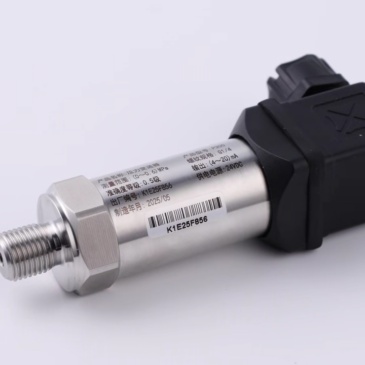

Application
Specifically designed for applications with strict hygiene and cleanliness requirements, this transmitter features food-grade materials (such as 316L stainless steel), a dead-zone-free design, and supports CIP/SIP cleaning as well as high-temperature sterilization.
Product Parameters
|
Power Supply |
9~36VDC，15~36VDC，3~5VDC |
|
Measuring Range |
0 ...10kPa ...4Mpa |
|
Pressure Type |
Gauge Pressure (GP) |
|
Output Signal Type |
4~20mA，RS485，0~10VDC，0~5VDC，1~5VDC，0.5~2.5VDC |
|
Mounting Interface |
M20x1.5，M27×2，G1/2，G3/4，G1，50.5 |
|
Accuracy Grade |
0.25%FS，0.5%FS |
|
Overload Pressure |
±0.01%FS/℃ |
|
Temperature Drift |
-40 ~ 70℃ |
|
Temperature Compensation |
±0.1% FS/year |
|
Stability Performance |
-40 ~ 85℃ |
|
Power Supply |
IP65 |

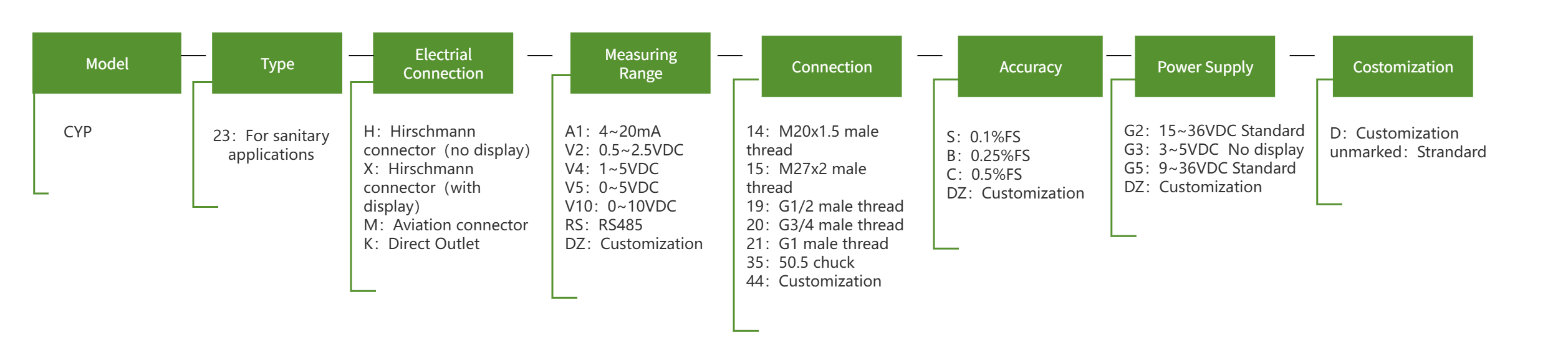

Product Selection
Product Advantages:
